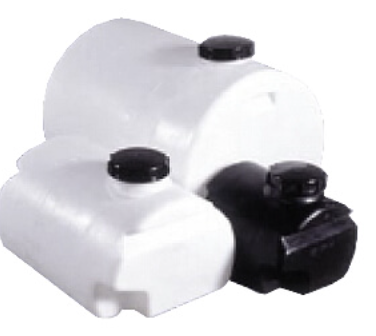

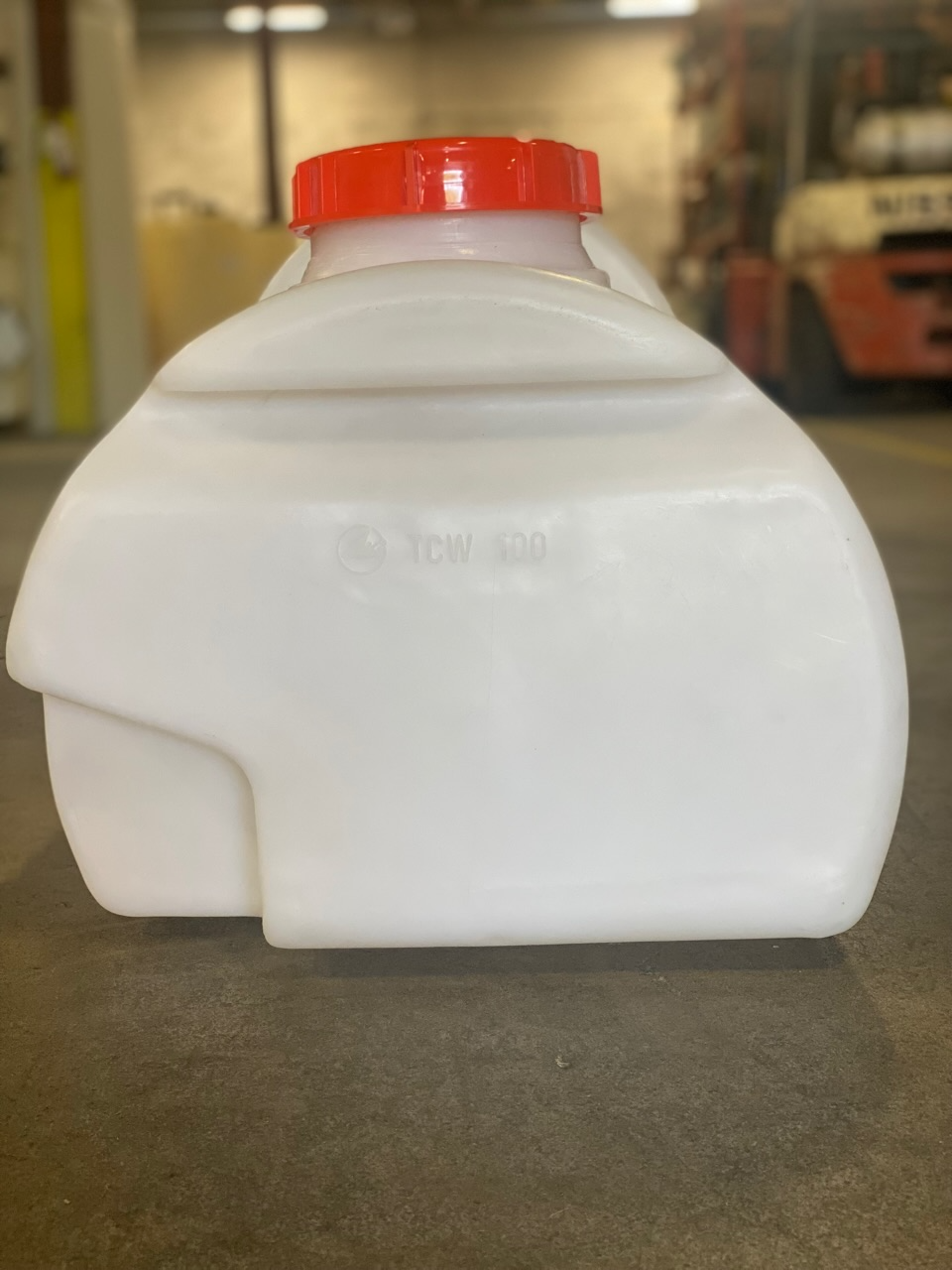

Round Tanks

The Round Tanks are designed with a flat bottom and can be used for a variety of custom applications.

round tanks
  • Excellent chemical and corrosion resistance and low temperature impact
  • Durable one-piece seamless construction
  • UV stabilized for sunlight protection
  • Manufactured from HDPE or XHDPE/XLPE (cross-linked polyethylene)
  • The HDPE resin complies with FDA and is listed NSF 61 for potable water applications
  • Fittings are not supplied on tanks unless requested
  • Supplied with a 5-1/2� threaded lid

Flat Bottom Round tanks

Capacity
Model Imp. Gallons Litres Diameter Length Height Lid Size
ico_pdf RT-40 9 40 15" 18" 16" 5-1/2"
ico_pdf RT-100 22 100 20" 27" 18" 5-1/2"
ico_pdf RT-300 66 300 27" 37" 27" 5-1/2"
ico_pdf RT-500 110 500 30" 45" 32" 5-1/2"

Usage Types are (but not exclusive) or Which Industries use this kind of tank:

Please refer to all the previously mentioned tanks as they are all flat bottom round tanks except for the horizontal and cone bottom tanks.
